FiltaPave® Specifications

Contact FPP Industries today and speak to our team to find out more about the specifications for FiltaPave®, our innovative asphalt alternative product.

Versatility Of FiltaPave®

FiltaPave® is a particularly versatile porous paving – it can be used on footpaths, tree surrounds, driveways, car parks, gardens & patios. It is also effective in preventing trip hazards, soil erosion and puddles. It’s composition includes recycled car tyres and recycled concrete, and
it can be used to filter water prior to underground storage in water tanks.

Specifications

FPP Industries

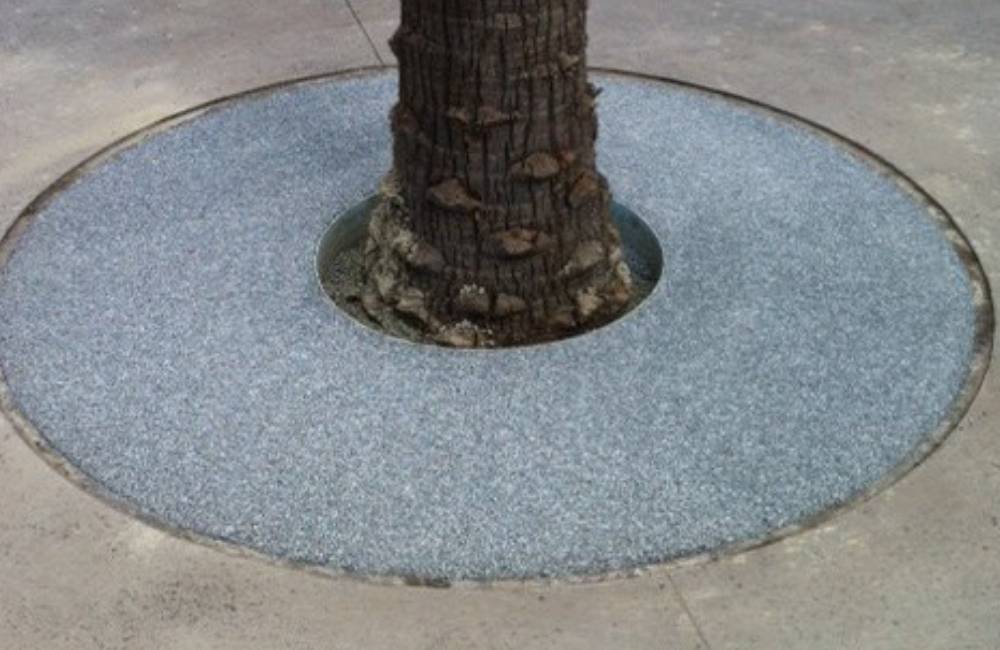

Tree Surrounds

  • Hand compact sub-base
  • Base – crushed concrete aggregate or blue metal – nominal size 10mm; thickness 30mm; hand compacted
  • FiltaPave® Porous Pavement – thickness 40mm
FPP Industries

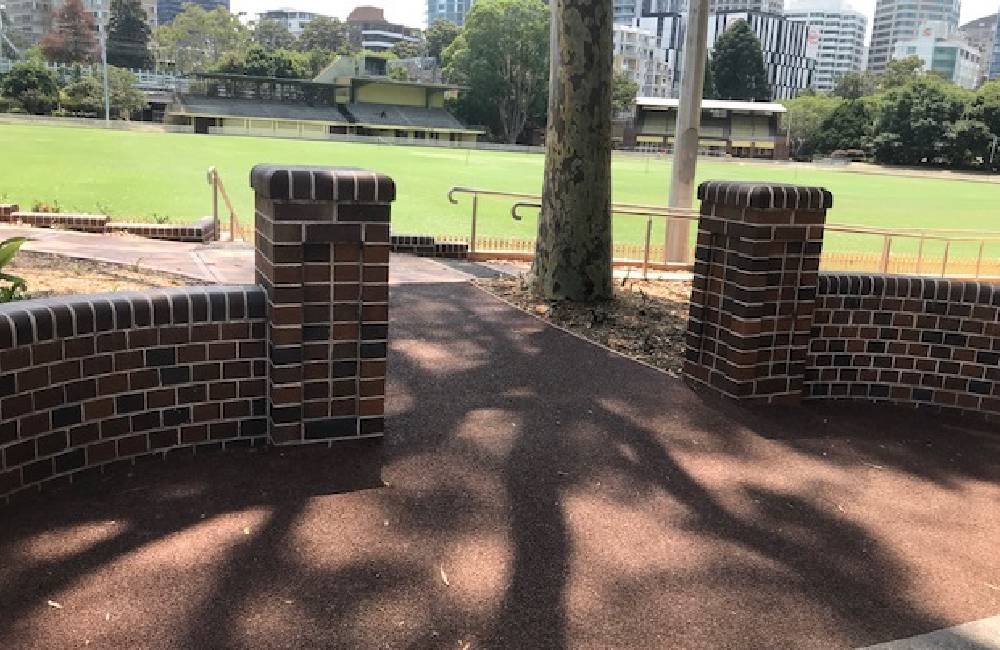

Pedestrians & Bicycles

  • Compacted sub-base to 95% min.
  • Base – crushed concrete aggregate – nominal size 20mm; thickness 50mm; compacted to 95%min.
  • FiltaPave® Porous Pavement – thickness 40mm

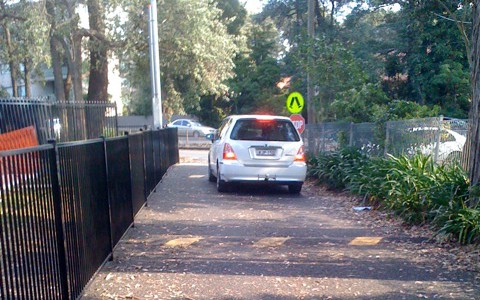

Filtapave-Light Vechiles

Light Vehicles

  • Compacted sub-base to 95% min.
  • Base – crushed concrete aggregate – nominal size 20mm; thickness 100mm; compacted to 95% min.
  • FiltaPave® Porous Pavement – thickness 50mm
FPP Industries

Heavy Vehicles

  • Compacted sub-base to 95% min.
  • Base – crushed concrete aggregate – nominal size 20mm; thickness 250mm; compacted to 95% min.
  • FiltaPave® Porous Pavement – thickness 75mm

Overpour to Pre-Engineered Surfaces (Concrete or Asphalt)

  • Clean existing surface, remove loose materials, and prime
  • Apply FiltaPave® Porous Pavement – thickness 30mm
FPP Industries

FiltaPave® Colours

  • Charcoal – Standard colours (matches asphalt)
  • Titanium – Light grey colour (matches concrete)
  • Cinnamon – Reddish/brown colour (matches bricks and pavers)
  • Shamrock – Green (matches grass)

Notes

If the sub-base has clean soil with good infiltration properties, then the use of porous pavement may reduce number and size of pits, as well as reducing size of storm water pipes. This will be determined by hydraulic design, where underdrain of crushed concrete acts as a reservoir.

The City of Sydney require ‘Blue Metal’ aggregate to replace crushed concrete when tree roots are present.

The FiltaPave® binder is very fast curing binder and will cure within 24 hours. As a result, it gives a very early handover to the client. Product will be inert, which means that other products will not affect it after 24 hours. FiltaPave® is not suited to main roads.
